Release time:2022-10-20
Number of views:179

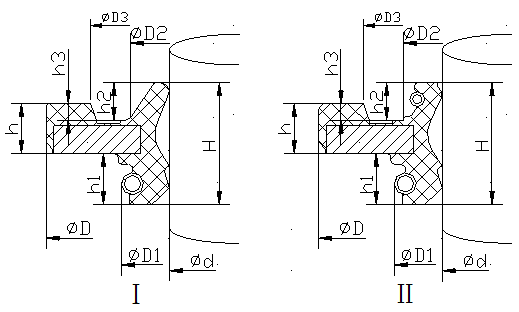

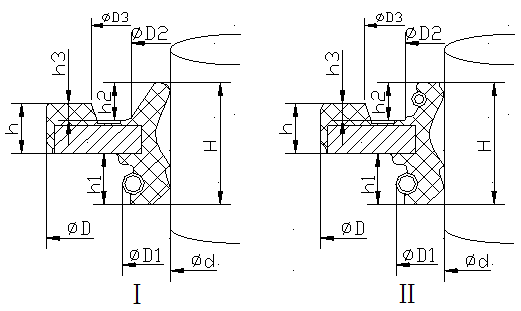

Oil seal specification | h | h1 | D1 | D3 | structural style |
10-21-7 | 2.3 | 3 | 16 | 18 | Plate positive single spring |
10-26-3.5/8.8 | 3.5 | 3.2 | 17.2 | 22 | Plate positive single spring |
10-26-9.7 | 3.5 | 4.2 | 17.2 | 22 | Plate positive single spring |
11-32-3.55/9 | 3.55 | 4.5 | 17.5 | 28.1 | Plate positive single spring |
11-32-3.55/9N | 3.55 | 4.3 | 17.5 | 28.1 | Plate positive single spring |
12-32-3.3/8.5 | 3.3 | 4 | 18.5 | 28 | Plate positive single spring |
12-37-3.5/8.8 | 3.5 | 3.2 | 18.5 | 33 | Plate positive single spring |
12.4-31-3.3/8.5 | 3.3 | 4 | 19 | 27 | Plate positive single spring |
12.4-32-3.3/8.5 | 3.3 | 3.9 | 19 | 28.2 | Plate positive single spring |
12.4-32-3.55/9N | 3.55 | 4.2 | 19 | 28 | Plate positive single spring |
12.4-35.5-3.3/11 | 3.3 | 5.8 | 19 | 31.5 | Plate positive single spring |
12.5-32-3.3/8.5 | 3.3 | 3.9 | 20 | 28 | Plate positive single spring |
12.5-32-3.3/8.5N | 3.3 | 3.9 | 20 | 28 | Plate positive single spring |
12.5-32-3.7/8.5 | 3.7 | 3.9 | 20 | 27 | Plate positive single spring |
12.5-32-9.6 | 3.3 | 4.4 | 20 | 28.1 | Plate positive single spring |
12.5-37-3.3/8.8N | 3.3 | 4.3 | 19 | 33 | Plate positive single spring |
12.5-37-8.8 | 3.3 | 4 | 22.5 | 33 | Plate positive single spring |
12.5-37-3.5/8.8 | 3.5 | 4 | 22.5 | 33 | Plate positive single spring |
12.5-37-10 | 3.3 | 4.7 | 19.5 | 33 | Plate type positive double spring |
12.5-40-9.5 | 3.6 | 4.1 | 19.5 | 35.5 | Plate positive single spring |
13-32-3.3/8.8 | 3.3 | 3.9 | 19.5 | 29 | Plate positive single spring |
13-36.6-3.6/9.3 | 3.6 | 3.9 | 19.5 | 31.5 | Plate positive single spring |
14-32-9 | 3.3 | 4 | 20.8 | 28 | Plate positive single spring |
14-39-4/10 | 4 | 5 | 20.5 | 34 | Plate positive single spring |
14-42-9 | 3.4 | 4 | 21 | 36 | Plate positive single spring |
15-32-9 | 3.3 | 4 | 21.5 | 28 | Plate positive single spring |
15-34-9 | 3.4 | 4 | 21.8 | 30 | Plate positive single spring |
15-34.8-3.3/8.8 | 3.3 | 3.9 | 21.5 | 31.8 | Plate positive single spring |
15-39-3.55/9.8 | 3.55 | 4.2 | 21.5 | 32.5 | Plate positive single spring |
15-39-3/9.1N | 3.6 | 4.3 | 21.5 | 35.2 | Plate positive single spring |
15-39-4.2/9 | 4.2 | 4 | 21.5 | 35 | Plate positive single spring |
15-42-9 | 3.4 | 4 | 21.5 | 36 | Plate positive single spring |
16-32-9.3 | 3.4 | 4 | 22.5 | 29 | Plate type positive double spring |
16-34-9 | 4 | 4 | 22.8 | 30 | Plate positive single spring |
16-43-3.8/9.5 | 3.8 | 4 | 22.5 | 37.7 | Plate positive single spring |
16-44-3.3/10 | 3.3 | 4 | 22.5 | 40 | Plate positive single spring |
16-45-3.5/9.5 | 3.5 | 4 | 22.5 | 40 | Plate positive single spring |
16-53-3.5/9.5 | 3.5 | 4 | 22.5 | 48 | Plate positive single spring |
18-34.5-8.8 | 3.5 | 4 | 24.5 | 32.4 | Plate positive single spring |
18-34.8-8.8 | 3.7 | 3.4 | 24.5 | 31.7 | Plate positive single spring |
18-36-4/10.5N | 4 | 5 | 24.5 | 32 | Plate positive single spring |
18-36-4/11 | 4 | 4.5 | 26 | 31 | Plate positive single spring |
18-36-4.3/10.9 | 4.3 | 4.5 | 26 | 31.7 | Plate positive single spring |
18-38-8.8 | 3.5 | 4 | 24.5 | 31.8 | Plate positive single spring |
18-39-8.8 | 3.5 | 4 | 24.5 | 34 | Plate positive single spring |
18-40-10.3 | 3.4 | 4.8 | 24.5 | 34 | Plate positive single spring |
18-42-9 | 3.6 | 4.3 | 25.8 | 37 | Plate positive single spring |
18-43-8.8 | 3.5 | 4 | 24.5 | 38 | Plate positive single spring |
18-44.2-3.6/9.3 | 3.6 | 4 | 25 | 39 | Plate positive single spring |
18-50-9 | 4.5 | 4 | 24.5 | 45.1 | Plate positive single spring |
18-53-3.5/9.5 | 3.5 | 4 | 24.5 | 48.4 | Plate positive single spring |
18-55-9.5 | 4.5 | 4 | 24.5 | 49 | Plate positive single spring |
20-31.8-8.8 | 3.5 | 4 | 27 | 28.3 | Plate positive single spring |
20-32-8.5 | 3.2 | 3.6 | 26.5 | 28.7 | Plate positive single spring |
20-34.8-8.8 | 3.4 | 3.7 | 27 | 29.5 | Plate positive single spring |
20-34-9.7 | 3.6 | 4.3 | 26.5 | 29 | Plate positive single spring |
20-34-9.7A | 3.6 | 4.3 | 26.5 | 29 | Plate positive single spring |
20-36-8.8 | 3.5 | 4 | 26.5 | 32 | Plate positive single spring |
20-37-3.3/9.8N | 4 | 4.5 | 27 | 33.4 | Plate type positive double spring |
20-37-3.9/9.8 | 3.9 | 4.9 | 28.2 | 33.3 | Plate positive single spring |
20-37-3.9/9.8N | 3.9 | 4.9 | 27.8 | 33 | Plate positive single spring |
20-37-4.2/9.7 | 4.2 | 4.9 | 27.8 | 33 | Plate positive single spring |
20-38-3.3/10 | 3.3 | 4 | 26.5 | 34 | Plate positive single spring |
20-39-3.6/10.8N | 4.3 | 5.8 | 26.5 | 35 | Plate positive single spring |
20-39-4.3/10.8 | 4.3 | 4.8 | 26.5 | 34 | Plate positive single spring |
20-40-10 | 3.6 | 4.6 | 26.5 | 34 | Plate positive single spring |
20-41-4.2/10N | 4.2 | 4.3 | 26.5 | 35.8 | Plate positive single spring |
20-41-4.2/9.9 | 4.2 | 5.2 | 26.5 | 36 | Plate positive single spring |
20-41.2-4/8.8 | 4 | 4 | 27.8 | 37 | Plate positive single spring |
20-41.2-4.2/10N | 4.2 | 4.8 | 26.5 | 37.2 | Plate positive single spring |
20-41.2-10 | 4.4 | 4.5 | 27 | 37.6 | Plate positive single spring |
20-46-10 | 3.7 | 4.5 | 27 | 40 | Plate positive single spring |
20-51-9.5 | 4.5 | 4 | 26.5 | 45 | Plate positive single spring |
20-57-3.7/9.5 | 4.6 | 3.8 | 26.5 | 51.8 | Plate positive single spring |
22-35-3.3/8.5 | 3.3 | 3.8 | 28.5 | 31.6 | Plate positive single spring |
22-35-3.55/9.6 | 3.55 | 5 | 28.5 | 31 | Plate positive single spring |
22-35-3.55/9.6N | 3.55 | 5 | 28.5 | 31 | Plate positive single spring |
22-37-3/9.7 | 3 | 4.4 | 28.5 | 33 | Plate positive single spring |
22-41-3.3/9.8N | 4 | 4.5 | 30 | 37.4 | Plate type positive double spring |
22-41-3.9/8.8 | 3.9 | 3.2 | 28.5 | 37.4 | Plate positive single spring |
22-41-3.9/10 | 3.9 | 3.2 | 29 | 37 | Plate positive single spring |
22-41-4/10.5N | 4.2 | 5 | 28.5 | 37 | Plate positive single spring |
22-41-10.5 | 4.2 | 4.5 | 29 | 37.4 | Plate positive single spring |
22-41.2-3.9/9.7 | 3.9 | 4.6 | 28.5 | 36.7 | Plate positive single spring |
22-43-3.3/10 | 3.3 | 4 | 28.5 | 39 | Plate positive single spring |
25-39-3.4/7.9 | 3.4 | 4.4 | 33.2 | 34.4 | Plate positive single spring |
25-42-3.55/10N | 3.55 | 4.6 | 31.5 | 38 | Plate positive single spring |
25-42-9 | 3.7 | 3.8 | 31.5 | 36.1 | Plate positive single spring |
25-42-10N | 3.7 | 4.5 | 32 | 36.2 | Plate positive single spring |
25-43.4-3.8/9.6 | 3.8 | 4 | 31.5 | 38.6 | Plate positive single spring |
25-46.2-9.3 | 3.5 | 4.2 | 32.6 | 43 | Plate positive single spring |
28-48-4/9.8 | 4 | 4.2 | 34.5 | 44 | Plate positive single spring |
28-53-10 | 5 | 4.2 | 35.5 | 47 | Plate positive single spring |
